SQL Joins (ANSI)

Context: FIT2094_MOC, FIT3003_MOC · combine rows across tables on a PK–FK match · SQL form of the relational-algebra join · ANSI syntax required in FIT2094; FIT3003 lectures and labs use the old-style form Problem it solves: retrieve columns from two related tables, matching each child row to its parent.

Quick Revision

• 🎯 Trigger: data spans two tables ➔ JOIN … ON (explicit condition); shortcut to USING/NATURAL only when key names match.
• ⚡ Key Constraint: a NATURAL JOIN on tables with no common column silently becomes a Cartesian product, not a join — as does an old-style join with a missing WHERE condition.

🔧 Minimal Working Example

SELECT *
FROM   drone.manufacturer
JOIN   drone.drone_type
ON     manufacturer.manuf_id = drone_type.manuf_id;

Expected output: manufacturers matched to their drone types; the result has two manuf_id columns (one per table).

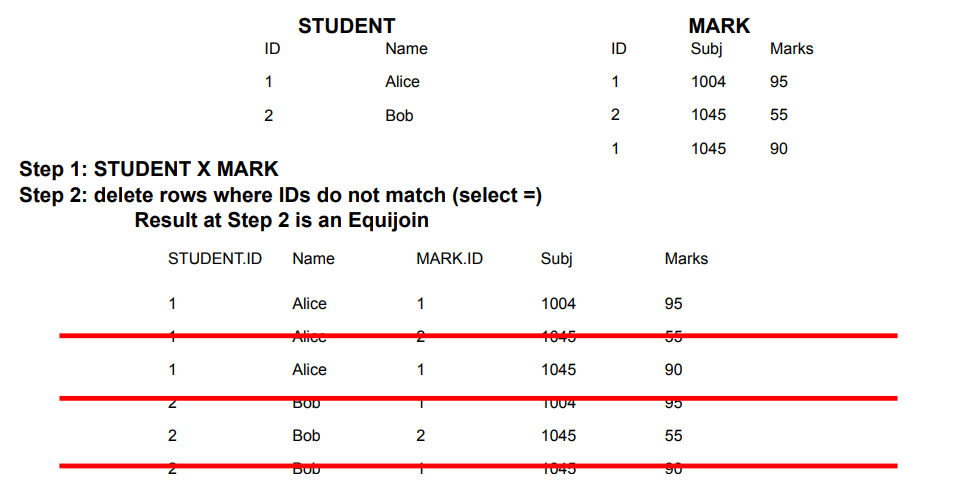

• JOIN … ON ➔ most flexible/reliable; state the equi-join condition explicitly; works even when key columns are named differently; keeps both columns (duplicate).
• Prefix duplicates ➔ with duplicate names you must qualify: manufacturer.manuf_id.
• JOIN … USING (col) ➔ when both tables share the column name; removes the duplicate column.

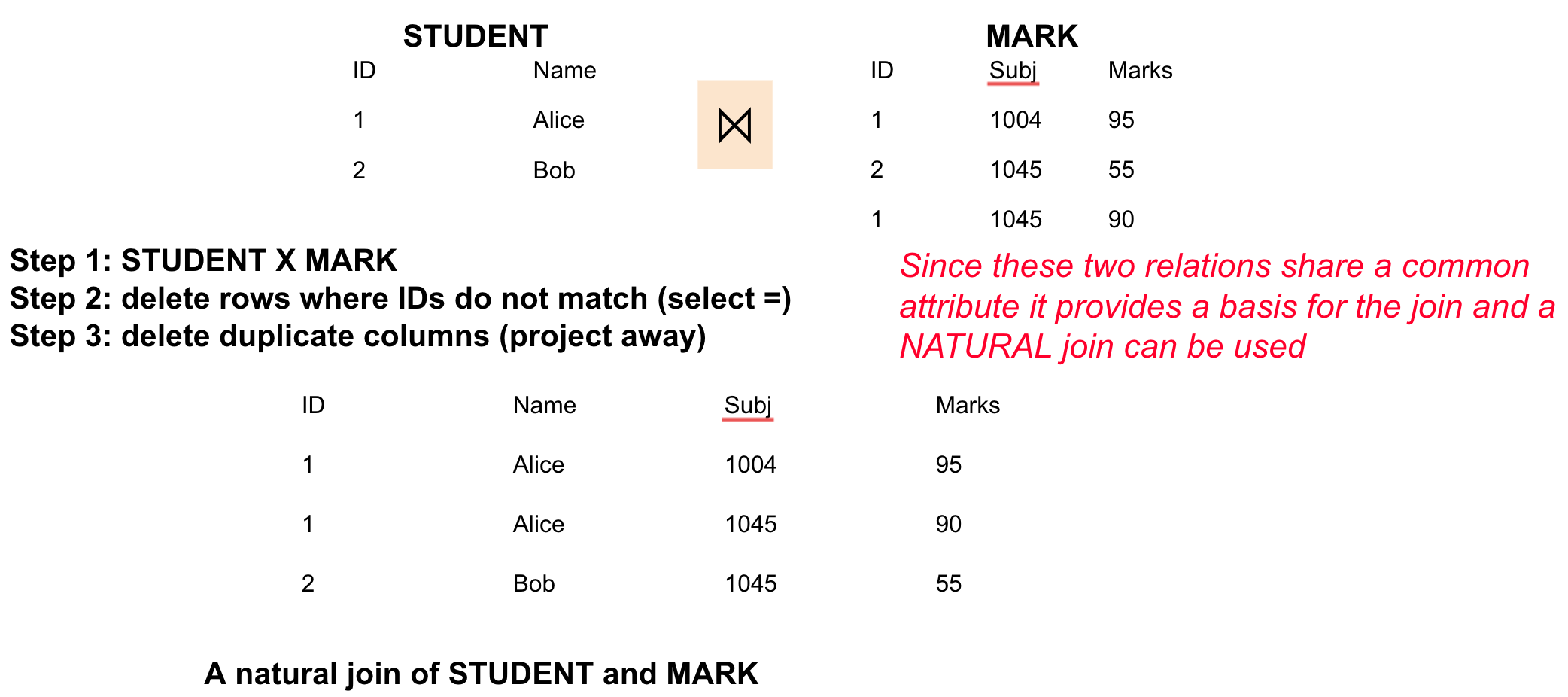

• NATURAL JOIN ➔ no condition; auto-joins on all same-named columns and drops duplicates.

🔀 Variations

Form	Condition	Duplicate col?	Requires
JOIN … ON	explicit ON a=b	kept (qualify)	nothing (any names)
JOIN … USING	USING (col)	removed	same column name
NATURAL JOIN	implicit (all common names)	removed	same column name(s)
old-style / implicit	join condition in WHERE	kept (qualify)	one condition per table pair

🔹 Old-style (implicit) join — FIT3003 house syntax

Three-table join: comma-list FROM + join conditions in WHERE

SELECT ct.cname, ct.cphone, cs.salesdate, cs.purchasedPrice, cs.stampDuty,
       c.make, c.model
FROM   customer ct, carsales cs, car c
WHERE  ct.customerID = cs.customerID
AND    c.carID       = cs.carID;

• Table alias, no AS ➔ customer ct; prefixing every attribute is recommended whenever more than one table is involved, to avoid ambiguity.
• Condition count ➔ joining $n$ tables needs $n-1$ join conditions in the WHERE, ANDed with any search conditions. 💡 Common Mistake: Missing join condition = PRODUCT, not a join ➔ FIT3003 warns this exhausts your Oracle quota and locks your account; count your ANDs before you run.

✍️ Practice

Practice 1: Join MANUFACTURER and DRONE_TYPE on manuf_id with a single manuf_id column in the output, assuming the column name matches in both.

Reference solution

SELECT *
FROM   drone.manufacturer
JOIN   drone.drone_type USING (manuf_id);

• Key move: USING collapses the shared manuf_id to one column (ON would leave two).

Practice 2 (FIT3003 Lab 1, Q27-style): number of sold cars for each colour, using old-style syntax.

Reference solution

SELECT   colour, COUNT(DISTINCT customerId)
FROM     car c, carsales cs
WHERE    c.carid = cs.carid
GROUP BY colour;

• Key move: the join condition lives in WHERE and runs before grouping; the grouping column repeats verbatim in GROUP BY.

⚠️ Common Mistakes

• 💡 Unit-specific syntax rule ➔ implicit joins are banned in FIT2094 (marked wrong in all assessments) but taught and used in FIT3003 — match the syntax to the unit assessing you.
• 💡 NATURAL JOIN with no shared column = Cartesian product ➔ every row paired with every row; prefer explicit JOIN … ON when unsure.
• 💡 INNER drops unmatched rows ➔ to keep a table’s rows with no match (or join a table to itself), see SQL Self Join and Outer Join.
