Foreign Key and Referential Integrity

Context: FIT2094_MOC · an FK is a Primary Key appearing in another relation · must match a full PK or be NULL · how relationships are implemented relationally

Quick Revision

• 🎯 Objective: a PK appearing in another relation ➔ every FK matches a full PK or is NULL.
• 📦 Core Components: FK ➔ referential integrity ➔ implements relationships.
• ⚡ Key Constraint: must match the full PK (composite too) or be NULL; NULL FK = optional participation.

📝 Core

1. The Foreign Key

• Definition ➔ an attribute set that exists as a Primary Key in the same or another relation.
• Implements ➔ relationships via PK–FK pairing.

2. Referential Integrity

• Rule ➔ every FK value matches a full PK in the referenced relation, or is NULL.
• Composite ➔ must match the entire composite PK; partial match invalid.
• NULL FK ➔ optional participation (no related parent).

3. On-Delete Actions

• RESTRICT (default) ➔ block deleting a parent still referenced by a child; the rule applied when no ON DELETE clause is given.
• CASCADE ➔ deleting the parent auto-deletes referencing child rows.
• SET NULL ➔ deleting the parent nulls the child’s FK (only if the FK column allows NULL).
• Chosen at design time ➔ read participation from the data model — mandatory FK ⟹ RESTRICT (SET NULL would orphan it; CASCADE would destroy history).

⚙️ Core Implementation

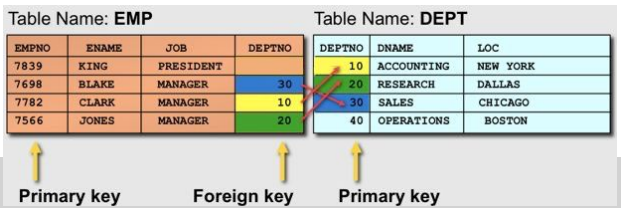

🔹 EMP–DEPT

schema + Mermaid

$\text{DEPT}(\underline{\text{deptno}},\text{dname},\text{loc})\text{EMP}(\underline{\text{empno}},\text{ename},\text{job},{\text{deptno}}^{\ast })$

erDiagram
  DEPT ||--o{ EMP : employs

ALTER TABLE emp ADD CONSTRAINT dept_emp_fk
    FOREIGN KEY (deptno) REFERENCES dept (deptno) ON DELETE SET NULL;

💡 Common Mistake: Match the full PK or be NULL ➔ the president has NULL deptno (no department, allowed); a partial match on a composite PK is invalid.

⚖️ Core Decision Matrix

FK state	Valid?	Meaning
equals a full PK	✅	related parent exists
NULL	✅	optional participation
partial composite match	❌	violates referential integrity
dangling (no PK)	❌	rejected by RDBMS

When It Flips: a conceptual relationship becomes a concrete FK column (Conceptual vs Logical Model); a NULL FK is the circle (min 0) of Crow's Foot. Deletes of a referenced PK are restricted or cascaded.

📊 Exam Execution Trace

Manual Execution Trace

Validating EMP.deptno:

Step / State	EMP.deptno	Valid?
0 (Init)	—	—
1	10 (exists in DEPT)	✅
2	NULL (president)	✅
3	99 (no such DEPT)	❌

Applied Exercise

Problem: Can EMP.deptno be NULL? Can it be a department not in DEPT? Derivation Proof / Hand-Calculation Walkthrough:

$$\begin{array}{rl}\text{NULL}& \Rightarrow \text{allowed (optional participation, president)}\\ \text{unmatched value}& \Rightarrow \text{rejected (referential integrity)}\end{array}$$

Final Extracted Output: NULL allowed; an unmatched value is rejected.

🧠 Active Recall

Define a foreign key and state the referential integrity rule.

• Hint: PK in another relation.

Answer

• Short answer: An FK is a PK appearing elsewhere; every FK value matches a full PK or is NULL.
• Why: PK–FK links ➔ EMP.deptno must be an existing DEPT.deptno or NULL.

Why is a NULL FK permitted, and what must an FK referencing a composite PK do?

• Hint: Optional participation + full match.

Answer

• Short answer: NULL FK = optional participation (min 0); a composite-PK FK must match entirely.
• Why: Two valid states ➔ equals a complete existing PK, or NULL.

CUST_TRAIN.cust_id references CUSTOMER. Which on-delete rule, and why not CASCADE or SET NULL?

• Hint: Mandatory participation ⟹ RESTRICT.

Answer

• Short answer: RESTRICT — a training record must always name a valid customer, so a customer referenced in CUST_TRAIN cannot be deleted.
• Why: Participation reading ➔ SET NULL would orphan the record (which customer?); CASCADE would erase historical training records; RESTRICT preserves both.
