Associative Entity

Context: FIT2094_MOC · resolves a many-to-many relationship · a bridging entity with a composite key · the only way Crow’s Foot stores relationship attributes

Quick Revision

• 🎯 Objective: bridge two entities in an M:N ➔ split into two 1:M, carrying the association’s attributes.
• 📦 Core Components: composite key (both parents’ keys) ➔ two identifying relationships.
• ⚡ Key Constraint: the only way Crow’s Foot stores relationship attributes.

📝 Core

1. The Bridge

• Definition ➔ an entity between two entities in an M:N relationship, turning it into two 1:M.
• Key ➔ composite of the two parents’ keys.
• Holds ➔ any attributes belonging to the M:N association.

2. Why It Exists

• Crow’s Foot limit ➔ can’t attach attributes to a relationship line.
• Break the M:N ➔ insert a middle entity (ORDER_PRODUCT).
• Weak entity ➔ joins both parents by two identifying relationships.

3. When to Add

• Conceptual ➔ keep M:N; add a bridge only when attributes to record.
• Logical ➔ every M:N resolved (relational DBs can’t implement M:N).

⚙️ Core Implementation

🔹 ORDER–PRODUCT bridge

Mermaid + schema

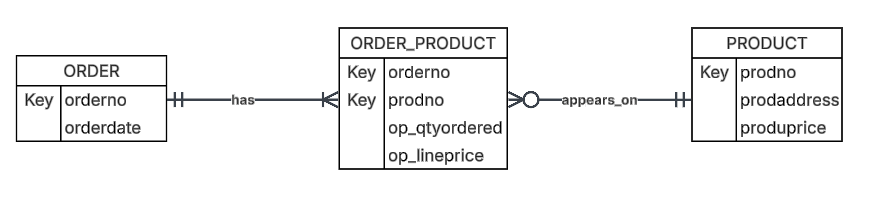

erDiagram
  ORDER ||--|{ ORDER_PRODUCT : has
  PRODUCT ||--o{ ORDER_PRODUCT : appears_on

$\text{ORDER\_PRODUCT}({\underline{\text{orderno}}}^{\ast },{\underline{\text{prodno}}}^{\ast },\text{op\_qtyordered},\text{op\_lineprice})$ 💡 Common Mistake: Composite key needs both parents ➔ to find one line’s op_qtyordered you need both orderno and prodno (e.g. order 61384, product M128).

⚖️ Core Decision Matrix

Stage	M:N handling	Trigger
conceptual	kept as M:N	simpler/desirable
conceptual + attrs	add bridge	attributes to store
logical (relational)	always resolve	no relational M:N
key	composite PK + 2 FKs	both parents

When It Flips: the bridging entity inherits both parents' keys, so it joins them by two identifying relationships and is itself a weak entity. A bridge table is an n-ary Relation over the parents' keys.

📊 Exam Execution Trace

Manual Execution Trace

STUDENT enrols UNIT (with enrolment attributes):

Step / State	Element	Result
0 (Init)	—	—
1	STUDENT M:N UNIT	needs bridge
2	attributes	enrol_year, mark, grade
3	bridge	ENROLMENT (composite key)

Applied Exercise

Problem: Resolve STUDENT M:N UNIT carrying enrol_mark, enrol_grade. Derivation Proof / Hand-Calculation Walkthrough:

$$\begin{array}{rl}\text{M:N + attributes}& \Rightarrow \text{ENROLMENT bridge}\\ \text{ENROLMENT}({\underline{\text{student\_id}}}^{\ast },{\underline{\text{unit\_code}}}^{\ast },\text{enrol\_mark},\text{enrol\_grade})& \end{array}$$

Final Extracted Output: two 1:M (STUDENT makes ENROLMENT, UNIT has ENROLMENT); composite key holds the attributes.

🧠 Active Recall

What problem does an associative entity solve, and how is its key formed?

• Hint: Attributes on an M:N.

Answer

• Short answer: Crow’s Foot can’t put attributes on a line, so a bridge splits the M:N into two 1:M; its key is the composite of both parents’ keys.
• Why: Both keys needed ➔ e.g. $(\text{orderno},\text{prodno})$ to retrieve a line.

When should an associative entity be introduced — conceptually vs logically?

• Hint: Attributes vs relational limit.

Answer

• Short answer: Conceptually only when attributes exist; logically always (relational DBs can’t do M:N).
• Why: Composite PK + two FKs ➔ the bridge becomes a relation on both parents.
